| Power supply voltage |
100 ÷ 240 [Vac] |
| Rated current |
3.0 [A] |
| Peak current |
12.0 [A] |
| Power |
750 [W] |
| Control mode |
CANbus | Modbus-RTU |
| Digital inputs |
16 |
| Digital outputs |
12 |
| Analog inputs |
2 |
| Analog outputs |
2 |
| Feedback interface |
isolated input for incremental encoder 5V differential RS422 or single-ended TTL/CMOS or for absolute encoder 5 V with BiSS-C or SSI interface |
| Safe Torque Off inputs |
2 STO inputs (Sil3/Ple) |
| Mounting |
Wall mounting |
| Safety protections |
over/under-voltage, over current, over temperature, short-circuit phase/phase and phase/earth |
| Status monitoring |
2 bicolor leds |
| Operative temperature |
5 ÷ 50 [°C] |
| Storage temperature |
-25 ÷ 55 [°C] |
| Humidity |
from 5 to 85 [%] |
| Protection class |
IP20 |
| Size |
180.7 [mm]x 50.0 [mm]x 138.5 [mm] |
| Weight |
1.20 [Kg] |
| Connection for software settings |
service SCI for programming and real time debug |
Certifications
| Certifications |
CE, RoHS, REACH, UL |
Main characteristics
√ 240 Vac mains power supply
√ Incremental or absolute encoder and Hall sensor inputs
√ Service serial for real time programming and debugging
√ Safe Torque Off SIL3/PLe inputs (STO)
√ External braking resistor management
√ Compliance with the most common PLC Masters on the market

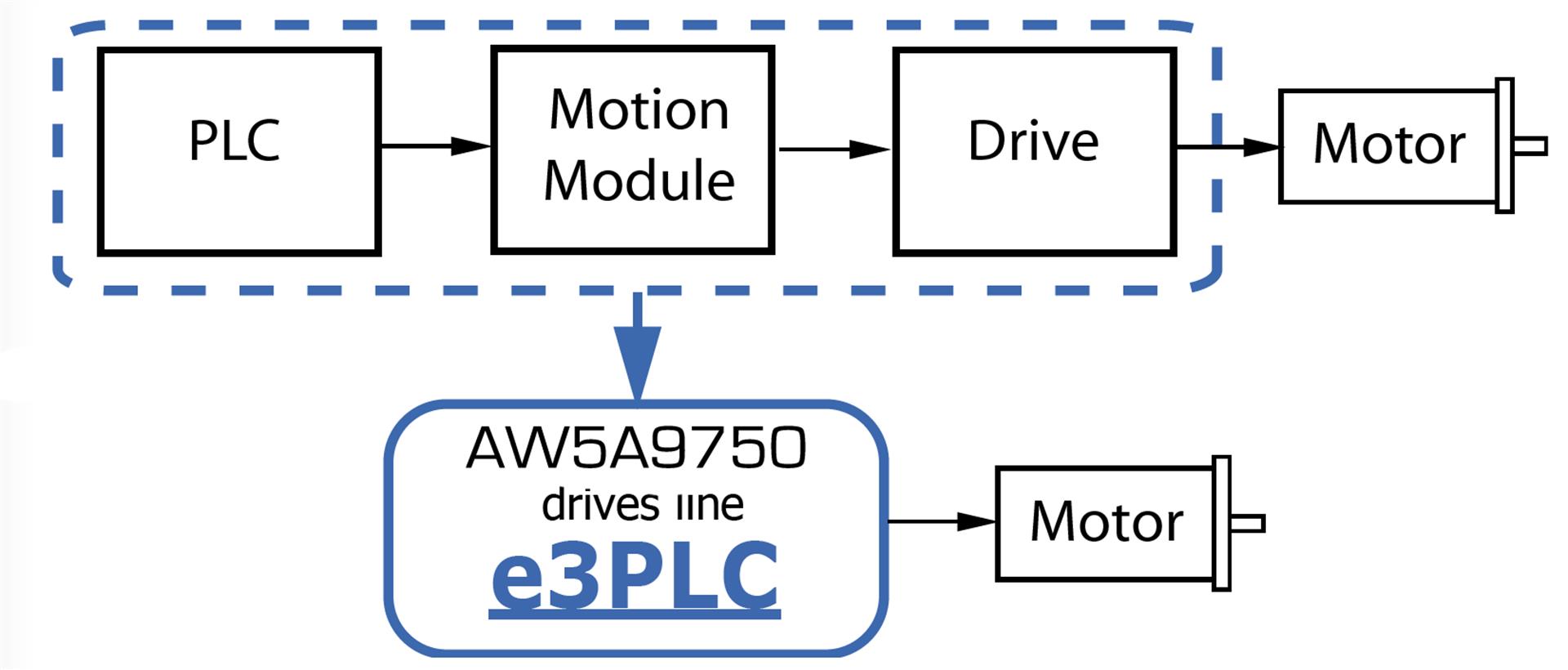

√ Programmable with e3PLC Studio IDE
√ UL recognized certified
CONNECTOR KIT
| Code | Description |
| AW5A97KIT-C2 | Connectors kit for cabling |
SOFTWARE KIT FOR PROGRAMMING
| Code | Description |
| SW5_SERV00-EE | Kit for drive programming with e3PLC Studio + 200 cm service serial cable and serial/USB converter |
Software configuration:

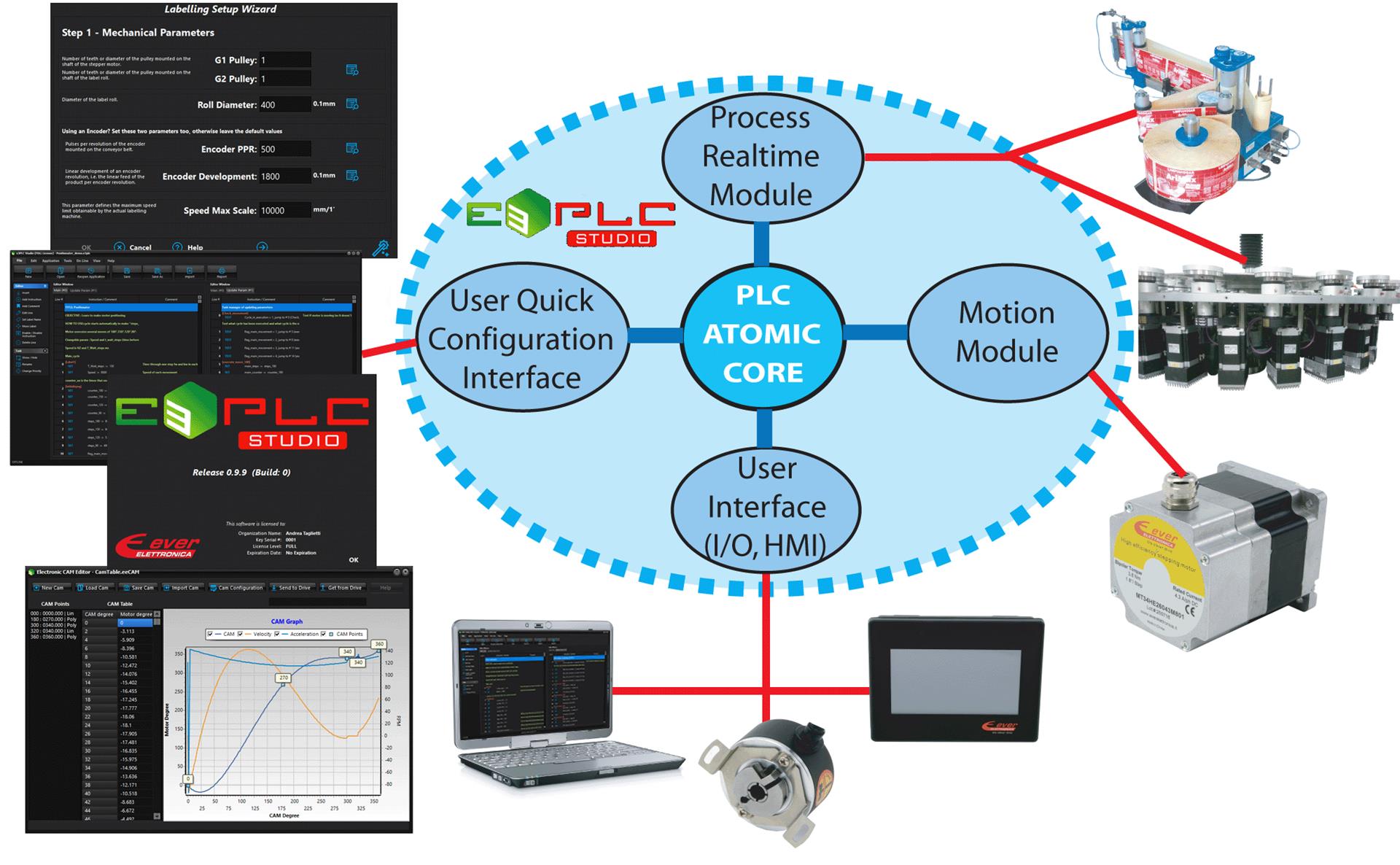

Ever co. proprietary PC Software Tools for easy and quick development, configuration and supervision of each system.
- Autonomous management of the firmware for the execution of the homing, of the target movement with relative or absolute quota and for the generation of the ramp profiles
- Torque mode for operation with torque limitation
- Speed control thanks to digital inputs, analogue inputs or fieldbus
- Electronic CAM with advanced programming of internal profiles inside the drive
- Electric shaft with encoder or analogue input with variable tracking ratio (Electric Gear)
- Fast inputs and outputs for motor’ start & stop and event synchronization for high speed response applications such as labeling, nick finder, flying saw etc.
- Possibility to synchronize the movements in multi-axis systems, even without fieldbus
- Enabling and on-the-fly changing of the motion control modes
