| Power supply voltage |
85 ÷ 265 [Vac] |
| Logic power supply |
24 ÷ [Vdc] |
| Rated current |
5.2 [A] |
| Peak current |
12.0 [A] |
| Control mode |
Ethernet Modbus TCP/IP |
| Digital inputs |
16 |
| Digital outputs |
12 |
| Analog inputs |
2 |
| Analog outputs |
2 |
| Feedback interface |
incremental encoder input 5V differential RS422 or single-ended TTL/CMOS | incremental encoder output 5V differential RS422 | absolute encoder input 5V BISS-C or SSI interface | Hall sensor signals input 5V single-ended TTL/CMOS |
| Safe Torque Off inputs |
2 STO inputs (Sil3/PLe) |
| Mounting |
Wall mounting |
| Safety protections |
over/under-voltage, over current, over temperature, short-circuit phase/phase and phase/earth |
| Status monitoring |
8 segments display |
| Operative temperature |
5 ÷ 40 [°C] |
| Storage temperature |
-25 ÷ 55 [°C] |
| Humidity |
from 5 to 85 [%] |
| Protection class |
IP20 |
| Size |
196.6 [mm]x 47.0 [mm]x 136.6 [mm] |
| Weight |
0.93 [Kg] |
| Connection for software settings |
SCI service serial interface for programming and debug in real time |
Certifications
| Certifications |
CE, RoHS, REACH, UL |
Main characteristics

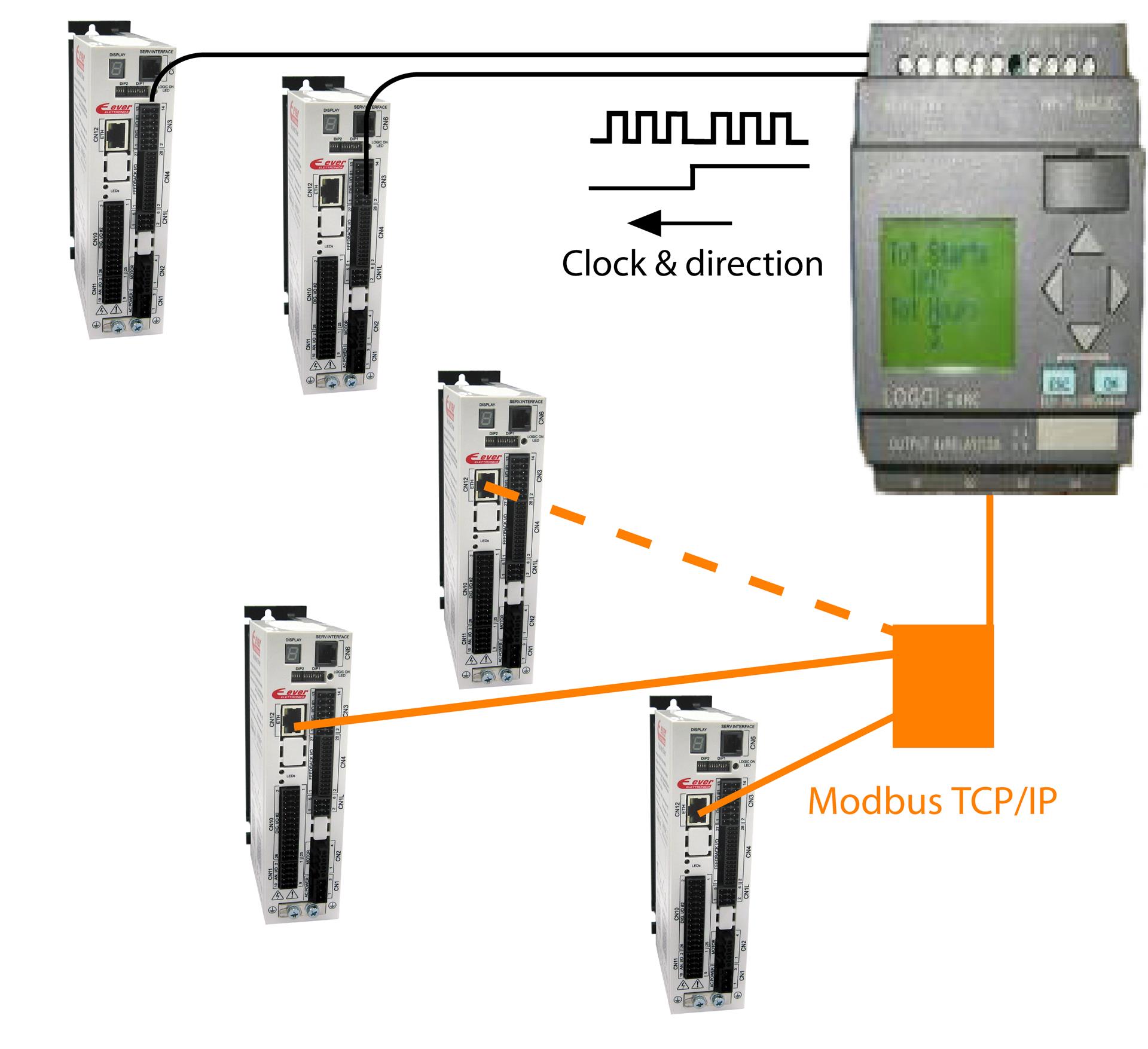

● Provvided with Ethernet Modbus TCP/IP interface fieldbus
● Safe Torque Off inputs (STO) SIL3/PLe
● Serial service interface for real time configuration and debug
● UL recognized certified
● Compliance with the most common PLC Masters on the market
● New e3PLC programming environment, easy and intuitive
Description:
The AW5 servodrives are programmable devices with PLC functions and fieldbus suitable for AC brushless motor control.
CONNECTORS KIT
| Codice | Descrizione |
| AW5A9KIT-C3 | Connectors kit for cabling |
SOFTWARE KIT FOR PROGRAMMING
| Code | Description |
| SW5_SERV00-EE | Kit for programming the drive with e3PLC Studio software + 200 cm service serial cable and serial/USB converter |
Software configuration:
Ever co. proprietary PC Software Tools for easy and quick development, configuration and supervision of each system.
- Autonomous management of the firmware for the execution of the homing, of the target movement with relative or absolute quota and for the generation of the ramp profiles
- Torque mode for operation with torque limitation
- Speed control thanks to digital inputs, analogue inputs or fieldbus
- Electronic CAM with advanced programming of internal profiles inside the drive
- Electric shaft with encoder or analogue input with variable tracking ratio (Electric Gear)
- Fast inputs and outputs for motor’ start & stop and event synchronization for high speed response applications such as labeling, nick finder, flying saw etc.
- Possibility to synchronize the movements in multi-axis systems, even without fieldbus
- Enabling and on-the-fly changing of the motion control modes
