AW5A9750L221-20a0790

Power supply voltage 100 ÷ 240 [Vac]
Rated current 3.0 [A]
Peak current 12.0 [A]
Power 750 [W]
Control mode CANbus | Modbus-RTU
Digital inputs 4
Digital outputs 3
Feedback interface isolated input for incremental encoder 5V differential RS422 or single-ended TTL/CMOS or for absolute encoder 5 V with BiSS-C or SSI interface
Safe Torque Off inputs 2 STO inputs (Sil3/PLe)
Mounting Wall mounting
Safety protections over/under-voltage, over current, over temperature, short-circuit phase/phase and phase/earth
Status monitoring 2 bicolor leds
Operative temperature 5 ÷ 50 [°C]
Storage temperature -25 ÷ 55 [°C]
Humidity from 5 to 85 [%]
Protection class IP20
Size 180.7 [mm]x 50.0 [mm]x 138.5 [mm]
Weight 1.20 [Kg]
Connection for software settings service SCI for programming and real time debugging

Certifications

Certifications CE, RoHS, REACH, UL

Main characteristics

√ 240 Vac mains power supply

√ Incremental or absolute encoder and Hall sensor inputs

√ Service serial for real time programming and debugging

√ Safe Torque Off SIL3/PLe inputs (STO)

√ External braking resistor management

√ Compliance with the most common PLC Masters on the market

√ Programmable with e3PLC Studio IDE

√ UL recognized certified


   CONNECTOR KIT


 Code       Description
 AW5A97KIT-C1                                       Connectors kit for cabling

   SOFTWARE KIT FOR PROGRAMMING

 Code       Description
 SW5_SERV00-EE      Kit for drive programming with e3PLC  Studio + 200 cm service serial cable and serial/USB converter


Software configuration:

Ever co. proprietary PC Software Tools for easy and quick development, configuration and supervision of each system.

- Autonomous management of the firmware for the execution of the homing, of the target movement with relative or absolute quota and for the generation of the ramp profiles
- Torque mode for operation with torque limitation
- Speed   control thanks to digital inputs, analogue inputs or fieldbus
- Electronic CAM with advanced programming of internal profiles inside the drive
- Electric shaft with encoder or analogue input with variable tracking ratio (Electric Gear)
- Fast inputs and outputs for motor’ start & stop and event synchronization for high speed response applications such as labeling, nick finder, flying saw etc.
- Possibility to synchronize the movements in multi-axis systems, even without fieldbus
- Enabling and on-the-fly changing of the motion control modes


Brushless AC Drives > Programmables > Vanadio > AW5A9750L221-20a0790
Technologies

Find out what Safe Torque Off STO is and how it works on our drives for stepper motors and brushless motors!

Internal production of our drives is our strenght, as it means Made in Italy quality for our customers. Find out what happens "behind the scenes".

Modbus is a communication protocol among the most widely used standards in the world of industrial devices. All our devices equipped with a serial interface (RS232 or RS485) implement and support the Modbus RTU protocol.

Ever Elettronica has been one of the first companies in the world to implement and validate the CANopen protocol and the DSP402 on its drives for stepper motors and brushless motors, starting from the early ‘90s.

Ever Elettronica programmable drives represent something new: they integrate a real PLC on the drive to be able to create complex automations with a single device.

Thanks to the ELSE technology integrated in the Ever Elettronica’s drives motors current control is so high that vibrations, resonances and noises don’t exist anymore.

Functionalities

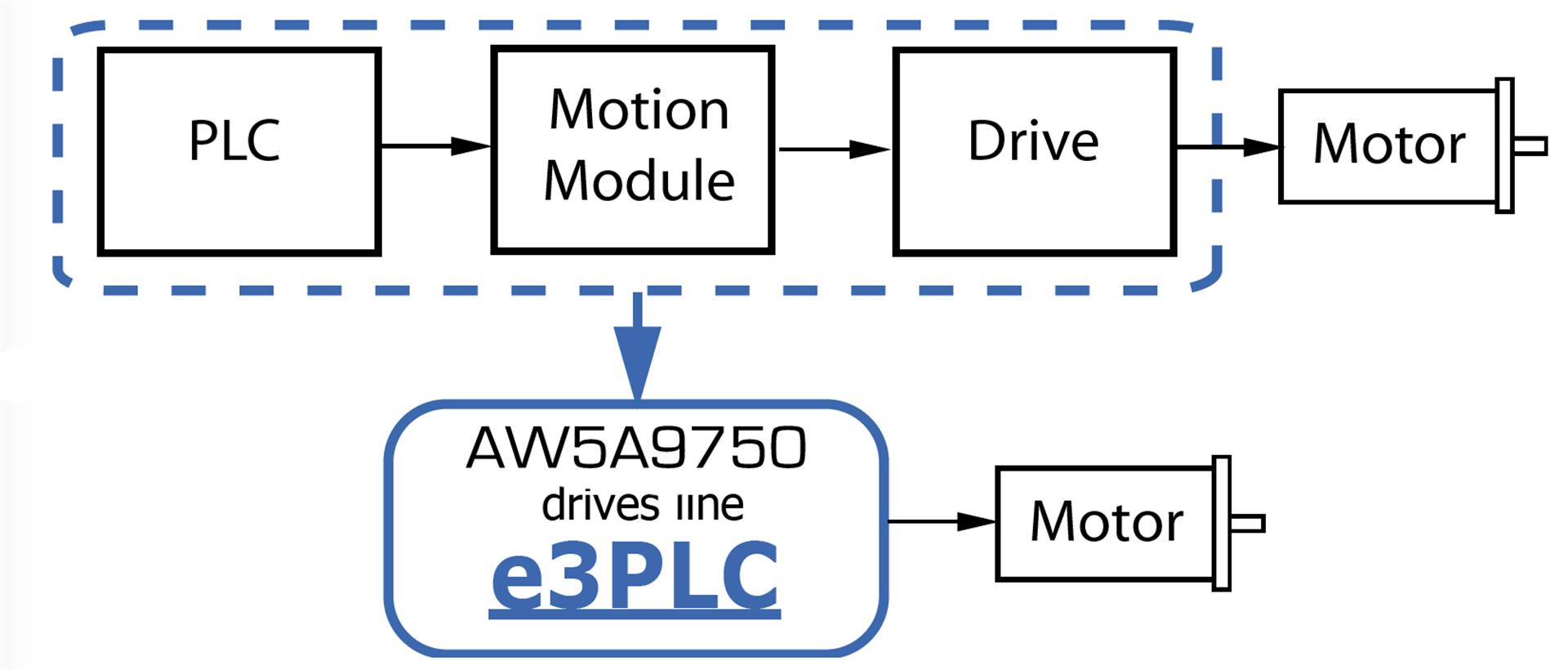

Fieldbus drives with autonomous functioning that, by integrating advanced PLC and motion controller functions in one single device, programmable by the user with the IDE for Windows PC and e3PLC, allows to reduce the traditional machine control solution

Connections

Connection for programming the unit and parameters configuration is made through SCI service serial interface and the IDE e3PLC Studio that allow easy and quick programming, a real time debug and a supervision of each system

Brushless AC Drives > Programmables > Vanadio > AW5A9750L221-20a0790

Fieldbus

Brushless AC Drives > Programmables > Vanadio > AW5A9750L221-20a0790
Brushless AC Drives > Programmables > Vanadio > AW5A9750L221-20a0790
